Balcrank Electric Diaphragm Pump Tote Package
Balcrank Electric Diaphragm Pump Tote Package 2

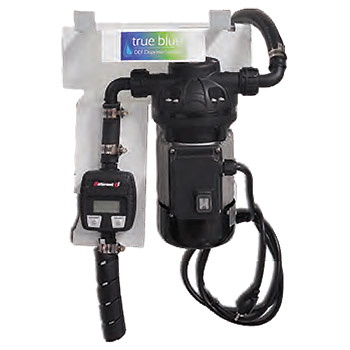

Balcrank Closed System Electric Diaphragm Pump Tote Packages

Balcrank's Closed System Electric Diaphragm Pump Tote Packages features a compact design mounting bracket, and your choice of either a 120 V AC Electric diaphragm pump(1200-020) or a 12 V DC Electric diaphragm pump(1200-021).

Call us TODAY at 727-835-0671 or
Toll Free at 800-761-4298

Get A Free Quote!

Model#:
1210-046 - 120 V AC Non-metered, Manual Nozzle
1210-047 - 120 V AC Metered, Manual Nozzle
1210-048 - 120 V AC Non-metered, Auto Nozzle
1210-049 - 12 V DC Metered, Auto Nozzle
1210-050 - 12 V DC Non-metered, Manual Nozzle
1210-052 - 12 V DC Non-metered, Auto Nozzle
1210-053 - 12 V DC Metered, Auto Nozzle
Includes:
  • 8570-006, 6' x 3/4" Suction hose.
  • 8561-020, 20' x 3/4" Discharge hose.
  • 4530-054, Drip tray
  • 4530-065, Side mount bracket.

    Options:
  • 3120-116, Meter DR style for DEF.
  • 1200-020, 120 V AC Electric diaphragm pump.
  • 1200-021, 12 V DC Electric diaphragm pump.
  • 3340-012, Auto nozzle, stainless steel.
  • 3340-015, Manual nozzle, polyethylene.

Technical Data DATA 120 V AC
(1200-020)		 DATA 12 V DC
(1200-021)
Max. Free Flow 8.5 gal/min (32.18 l/min) 9.5 gal/min (34.07 l/min)
Working Pressure 23 psi (1.6 bar) 23 psi (1.6 bar)
Power 120 V AC 12 V DC
Wetted materials Stainless Steel, Viton, PPE Stainless Steel, Viton, PPE



CLOSED system containers have a valve coupling system that seals the container opening on drums and totes (IBC) to prevent dirt, debris, bugs, etc., from entering the container and contaminating the diesel exhaust fluid. Liquid in container system is sealed and secure, throughout container life cycle.

For closed systems, use Reusable Poly Valve (RPV) or Reusable Stainless Valve (RSV) systems accessories. RSV and RPV components are interchangeable.

NOTE: DEF Packages do not included coupler systems. Order Seperately. You Must choose a coupler kit to create a complete system for your distribution needs.
Closed System Coupler Components
